High G-Force.
Unique Triple Shaft.
Built to Move.

Developed around the SST screen using our patented 10G screening technology. Engineered for high G-Force screening, the Dynamic X7 delivers integrated mobility, high throughput, and reduced operating costs.
The machine operates as a self-contained unit with onboard power, conveyors and feeder. Hydraulically foldable conveyors and walkways simplify transport, increased accessibility service points and increased accessibility for screen mesh maintenance. Built for flexibility, it performs across a wide range of extreme screening applications.

SST Screenbox

  • Proven SST 10G Design
  • Variable Power Modes
  • 2 x 7.45M² Screen Surface Area

Screening Area: 2 decks 7.45m2
Mesh Area: 5.6m x 1.45m

  • Side tensions top and bottom deck mesh
  • Drive: Heavy duty synchronised 3 shafts
  • Hydraulic folding walkways
  • Screen Angle: 12o, hydraulic adjust
  • Abrasion resistant material impact plate
  • Galvanised access walkways on both sides and top end of screen

Power & Control

  • 120kVA Stage 5 Genset
  • Built-in Mains Changeover
  • 24V PLC & Control System
  • All 400V Electric Drive Systems
  • 22 Kw Motor

Dual Power Hybrid:

On board Diesel Electric Genset – 120KVA

Or Plug in Mains connection

Feed Hopper

  • Variable Speed Electric Drive
  • Hardox side walls
  • Hydraulic Folding Extensions
  • 3.6m Rear Feed Width

Track System

  • Variable Speed Drive
  • Triple Grouser Pads

Oversize Conveyor

  • Variable Speed Electric Drive
  • Hydraulic Folding
  • 1000mm Wide Belt

Side Stockpile Conveyors

  • Variable Speed Electric Drive
  • Hydraulic Folding
  • 1000mm Wide Belt

Stockpile Height

  • Oversize: 3720mm
  • Mid Fraction: 3600mm
  • Fines: 3600mm

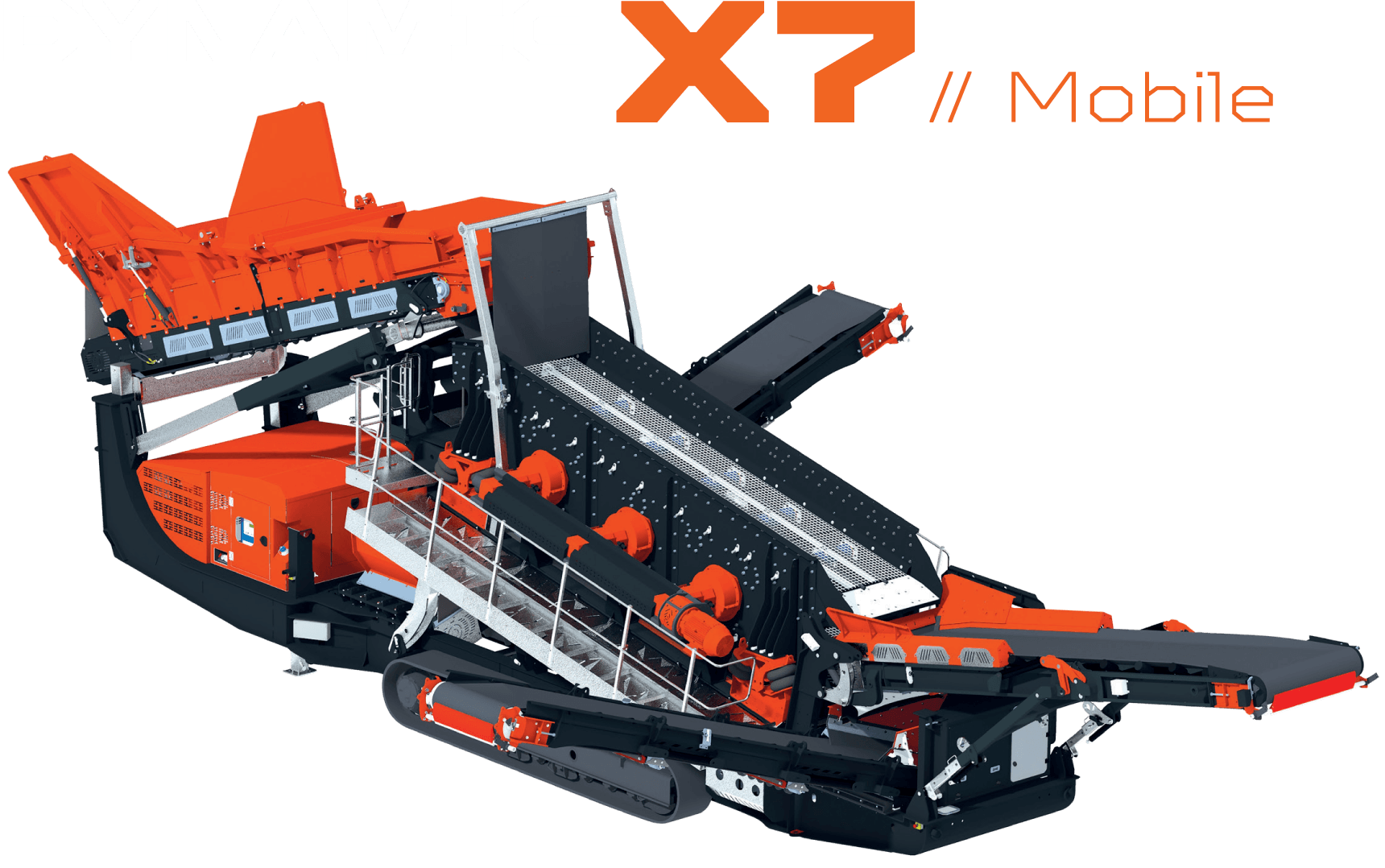

DynamicX7 Render

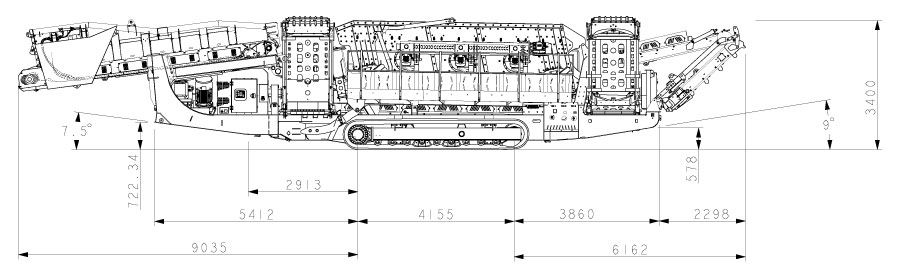

Transport Dimensions

Transport Dimensions

Transport Height: 3400mm

Transport Length: 19420mm

Transport Width: 3000mm

Weight: 55,000kg

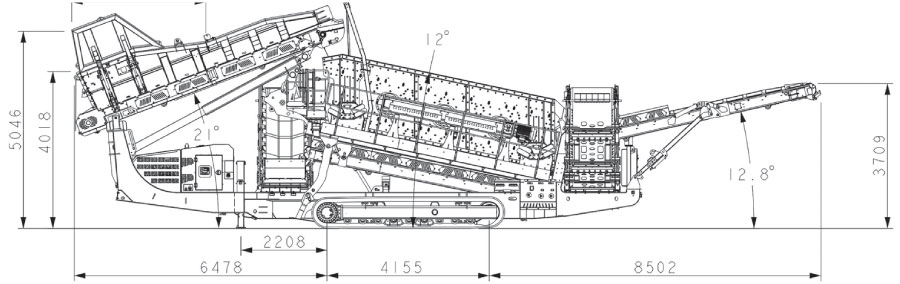

Working Dimensions

Working Dimensions
Working Dimensions
